7  LLM Interpretation

The llm_interpret_module() function provides AI-powered interpretation of functional modules by integrating Large Language Models (LLMs) with a Retrieval-Augmented Generation (RAG) strategy. This approach combines pathway information, scientific literature, and advanced text analysis to generate meaningful names and summaries for your functional modules.

library(mapa)
Important

Prerequisites: Before running LLM interpretation, ensure you have completed functional module generation using get_functional_modules() as described in previous chapters. The enriched_functional_modules object used in this chapter should be the output from the module clustering step.

7.1 Overview

The LLM interpretation process integrates multiple information sources to provide comprehensive module annotations:

  • Information Sources:

    • Pathway descriptions from GO, KEGG, Reactome, and metabolite databases
    • Gene/metabolite names from your input data
    • Scientific literature retrieved from PubMed based on pathway and molecule relevance
    • Local documents (optional) - your own research papers or relevant literature

  • Analysis Pipeline:

    1. Information Extraction: Extracts pathway descriptions and molecule information
    2. Literature Retrieval: Searches PubMed for relevant scientific papers
    3. RAG Strategy: Uses embeddings to find and rank the most relevant literature, see Section 7.2
    4. LLM Generation: Generates biological module names and research summaries

This approach leverages both structured biological knowledge and cutting-edge research to provide contextually rich interpretations of your functional modules.

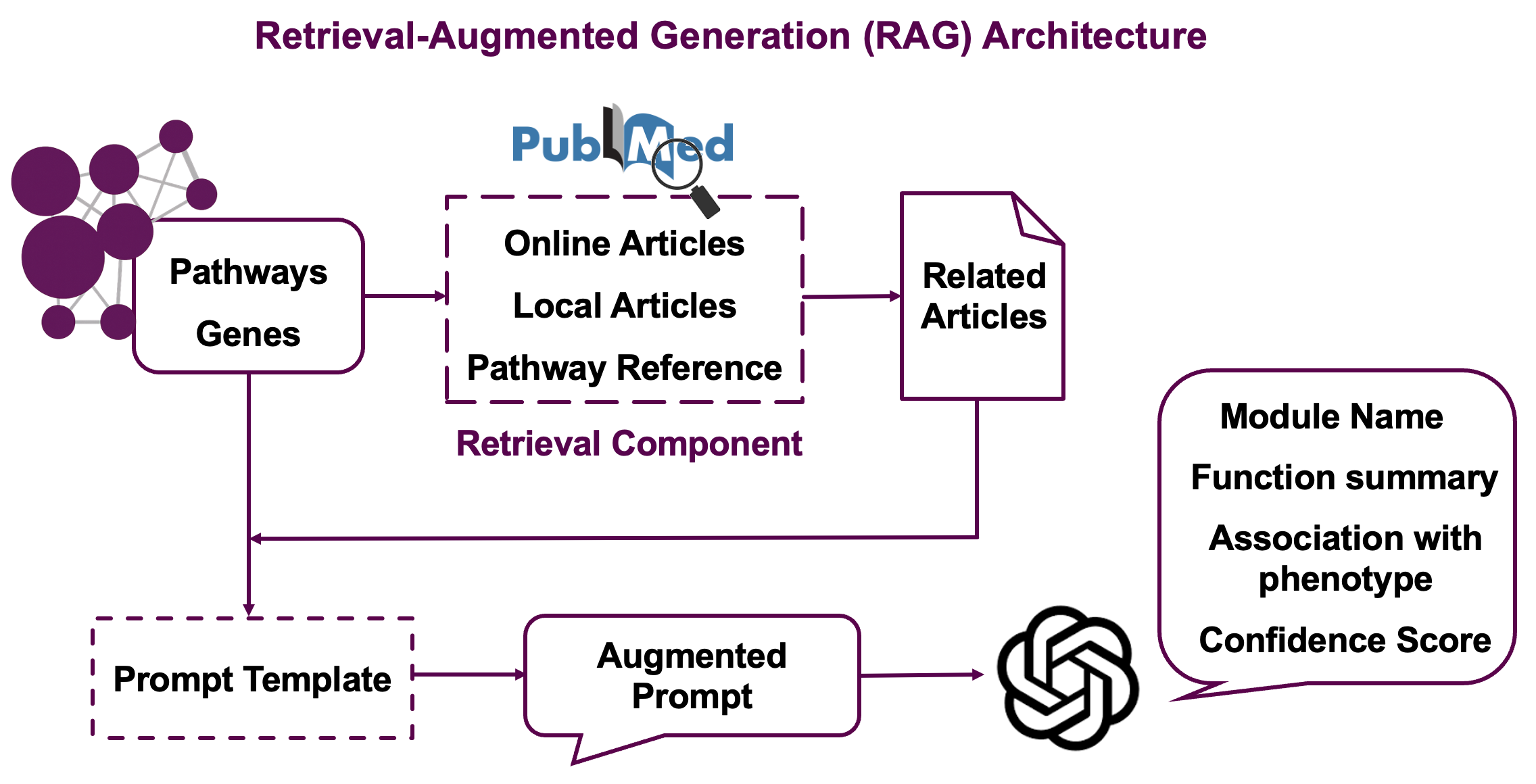

7.2 Understanding the RAG Strategy

The Retrieval-Augmented Generation (RAG) strategy works in several stages:

Stage 1: Literature Search

  • Searches PubMed using pathway names and gene/metabolite information
  • Retrieves abstracts and titles for relevant papers
  • Includes reference papers cited in pathway databases

Stage 2: Embedding-based Similarity

  • Generates text embeddings for module descriptions (pathways + molecules)
  • Calculates similarity between module embeddings and paper abstracts
  • Filters top papers based on cosine similarity scores

Stage 3: GPT-powered Reranking

  • Uses LLM to assess relevance of each paper to the specific module by assigning relevance scores (0-1) where 1 indicates high relevance to module pathways and molecules
  • Select the most informative literature for final interpretation

Stage 4: Final Generation

  • Combines module information with top-ranked papers
  • Generates biologically meaningful module names
  • Produces research summaries highlighting current knowledge
  • Assigns confidence scores (0-1) reflecting the LLM’s assessment of interpretation quality based on available evidence. High confidence means strong literature support and clear biological coherence

This multi-stage approach ensures that generated annotations are both scientifically accurate and contextually relevant.

7.3 Basic Usage

llm_interpreted_modules <-
  llm_interpret_module(
    object = enriched_functional_modules,
    llm_model = "gpt-4o-mini-2024-07-18",
    embedding_model = "text-embedding-3-small",
    api_key = "your_openai_api_key",
    embedding_output_dir = "embedding_output/",  # Output directory to store embeddings generated during analysis
    module_content_number_cutoff = 1,
    orgdb = org.Hs.eg.db                         # Necessary for gene annotation
  )
#   |============================================================================================================================| 100%, Elapsed 00:42
# Processing module: Functional_module_2
# Including PID number: 70
#   |============================================================================================================================| 100%, Elapsed 00:07
# ...
# Processing module 1/10: Functional_module_2
# - Generating module embeddings...
# - Reading and calculating PubMed similarity...
# - Local documents not found, skipping local similarity calculation
# - Reading document content...
# - Processing document content using GPT...
#   |============================================================================================================================| 100%, Elapsed 00:35
# - Filtering the most relevant results...
# Functional_module_2 processing completed
# ...
# All modules processing completed!
# Start to generate name and summary for functional modules ...
# Done
met_llm_interpreted_modules <-
  llm_interpret_module(
    object = met_enriched_functional_modules,
    llm_model = "gpt-4o-mini-2024-07-18",
    embedding_model = "text-embedding-3-small",
    api_key = "your_openai_api_key",
    embedding_output_dir = "met_embedding_output/",
    module_content_number_cutoff = 1
  )

7.4 Key Parameters

7.4.1 LLM and API Settings

Parameter Description Default Notes
llm_model GPT model for text generation "gpt-4o-mini-2024-07-18" Currently supports OpenAI models only
embedding_model Model for text embeddings "text-embedding-3-small" Used for document similarity
api_key OpenAI API key Required Store securely, never commit to version control

7.4.2 Analysis Control

Parameter Description Default Use Case
module_content_number_cutoff Minimum pathways per module 1 Filter small modules to focus on substantial ones
years Years to search back in PubMed 5 Balance between recent findings and comprehensive coverage
retmax Max papers per PubMed search 10 Control API usage and processing time
similarity_filter_num Papers kept after similarity ranking 20 First-stage filtering based on text similarity
GPT_filter_num Papers kept after GPT ranking 5 Final selection of most relevant papers
Note

API Usage & Processing Time: Each module requires multiple API calls (embedding + LLM generation), with costs scaling by number of modules and literature volume, so consider using module_content_number_cutoff to focus on important modules. Typical processing takes 2-5 minutes per module, with time increasing for more literature and larger modules, though progress is displayed during processing.

7.4.3 Optional Enhancements

Parameter Description Default Benefits
phenotype Disease/condition context NULL Adds disease-specific interpretation
local_corpus_dir Local directory with your own PDF files NULL Incorporates your own research or relevant literature to enhance the interpretation
output_prompt Include prompts in results TRUE Useful for understanding AI reasoning

7.5 Results Interpretation

After running LLM interpretation, examine the results:

# View analysis summary
llm_interpreted_modules
# --------------------
# Analysis method: enrich_pathway
# --------------------
# -----------Variable information------------
# 119  features/markers in total
# -----------Enrichment results and modules of genes------------
# -----------GO------------
# 1025 GO terms with p.adjust < 0.05
# 250 GO modules
# -----------KEGG------------
# 48 KEGG pathways with p.adjust < 0.05
# 29 KEGG modules
# -----------Reactome------------
# 48 Reactome pathways with p.adjust < 0.05
# 13 Reactome modules
# -----------Enrichment results and modules of metabolites------------
# -----------HMDB------------
# No HMDB results
# No HMDB modules
# -----------KEGG Metabolite------------
# No KEGG metabolite results
# No KEGG modules
# -----------Functional modules------------
# 158 Functional modules
# -----------LLM module interpretation------------
# 10 LLM interpreted modules
# --------------------
# Processing information
# 4 processings in total
# enrich_pathway ----------
#   Package    Function.used                Time
# 1    mapa enrich_pathway() 2025-06-10 10:50:36
# merge_pathways ----------
#   Package    Function.used                Time
# 1    mapa merge_pathways() 2025-06-10 10:57:22
# merge_modules ----------
#   Package   Function.used                Time
# 1    mapa merge_modules() 2025-06-10 10:58:25
# llm_interpret_module ----------
#   Package          Function.used                Time
# 1    mapa llm_interpret_module() 2025-06-10 14:24:47

7.5.1 Updated Functional Module Results

The functional module results are automatically updated with a new column llm_module_name, which is the LLM-generated names:

# View updated results with LLM names
head(llm_interpreted_modules@merged_module$functional_module_result)

Key result columns:

  • llm_module_name: AI-generated biological module name
  • module_annotation: Original representative annotation (fallback if LLM interpretation unavailable)

7.5.2 Result Components

For each interpreted module, the results include:

# Core interpretation results of a interpreted module
module_result <- llm_interpreted_modules@llm_module_interpretation$Functional_module_2

# Module name generated by LLM
module_name <- module_result$generated_name$module_name

# Summary of current research
module_summary <- module_result$generated_name$summary

# Confidence score (0-1)
confidence_score <- module_result$generated_name$confidence_score

When phenotype parameter was specified, result contains phenotype-specific interpretation.

module_result <- llm_interpreted_modules@llm_module_interpretation$Functional_module_2
phenotype_result <- module_result$generated_name$phenotype_analysis
# Papers used for interpretation
module_result <- llm_interpreted_modules@llm_module_interpretation$Functional_module_2
related_papers <- module_result$related_paper

# Access individual papers
paper1 <- related_papers[[1]]
paper1$title           # Paper title and PubMedID
# [1] "Modulation of Kit/stem cell factor receptor-induced signaling by protein kinase C. (PubMedID:7520444)"

paper1$relevance_score # Relevance score assigned by GPT
# [1] 0.9

paper1$cleaned_text    # Cleaned abstract text
# [1] "The Kit/stem cell factor receptor (Kit/SCF-R) is a transmembrane tyrosine kinase receptor of importance for the normal development of hemopoietic cells, melanoblasts, and germ cells. We recently reported that protein kinase C (PKC) is involved in a negative feedback loop regulating the Kit/SCF-R by direct phosphorylation on serine residues in the receptor... In conclusion, SCF-induced PI-3'-kinase activation paralleled the increased SCF-induced mitogenicity after inhibition of PKC."

If output_prompt = TRUE, results contains the exact prompt sent to the LLM for transparency:

module_result <- llm_interpreted_modules@llm_module_interpretation$Functional_module_2
prompt_info <- module_result$generated_name$prompt

7.6 Best Practices

  1. Start Small: Begin with a subset of modules to estimate costs and processing time
  2. Optimize Parameters: Adjust filtering parameters based on your module complexity
  3. Use Phenotype Context: Specify relevant diseases/conditions for more targeted interpretations
  4. Include Local Literature: Add your own papers for domain-specific insights
  5. Review Results: Examine confidence scores and retrieved literature quality
  6. Iterate: Refine parameters based on initial results

7.7 Next Steps

Continue to Data Visualization to create informative plots showcasing your LLM-interpreted modules.
